All 2020 Taycan Models

Center Bore71.6 mm
Bolt Pattern5x130
Wheel FastenersLug Bolts
Thread SizeM14 x 1.5


2020 Porsche Taycan 4S

Wheel Sizes | OffsetsTire Sizes
9Jx20 ET54
11Jx20 ET60
245/45ZR20 103Y
285/40ZR20 108Y
8Jx19 ET50
10Jx19 ET47
225/55R19 103V
275/45R19 108V
9.5Jx21 ET60
11.5Jx21 ET66
265/35ZR21 101Y
305/30ZR21 104Y


2020 Porsche Taycan 4S Plus
2020 Porsche Taycan Turbo
2020 Porsche Taycan Turbo


Wheel Sizes | OffsetsTire Sizes
9Jx20 ET54245/45ZR20 103Y
9.5Jx21 ET60265/35ZR21 101Y
Sponsored


Last edited:

wmras

Well-Known Member
First Name
Bill
Joined
Apr 6, 2020
Threads
3
Messages
413
Reaction score
401
Location
Oregon
Vehicles
Taycan TS, GT4 (sold), Macan Turbo, Cayman SBE 987.18
Country flag
You need a 19 mm socket. I am happy with this set from ECS Schwaben long reach socket set P/N PPS-1721LC. It includes 17mm, 19mm & 21mm.
Have had good luck with:
Tire Rack Steel Man 5PC SOCKET SET WITH NYLON SLEEVE


Genau

Well-Known Member
First Name
Dan
Joined
Dec 15, 2019
Threads
4
Messages
758
Reaction score
791
Location
Reston, Virginia
Vehicles
2020 Taycan 4S
Country flag

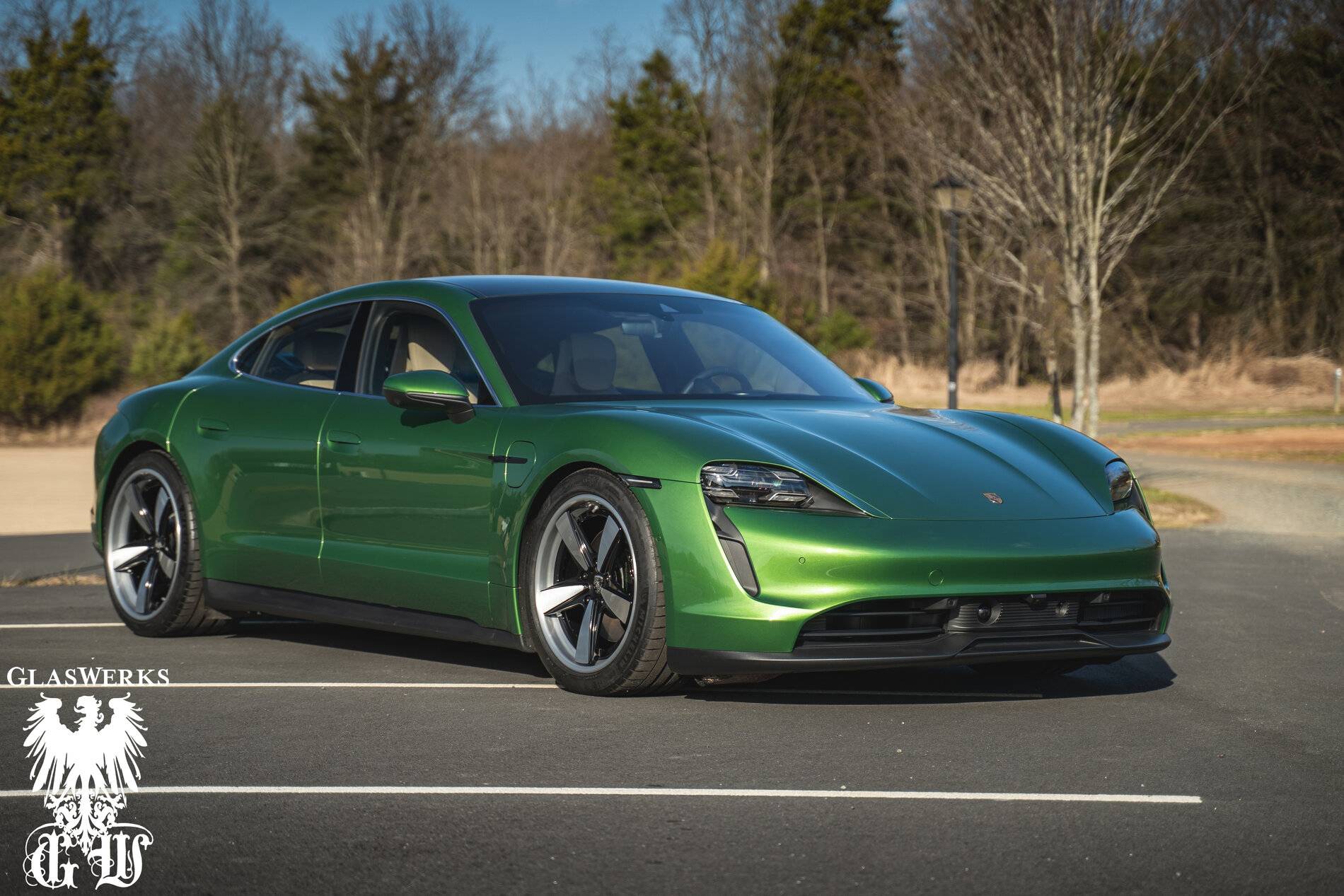

I'm told these are the largest rear tires ever installed on a Taycan, and they work perfectly. Here are the details compared to the original 20" Turbo Aero wheel set.



Porsche Taycan Taycan Wheel & Tire Specs -- Bolt Pattern, Center Bore, Thread Size, Offsets, Tire Sizes 855492F3-A7E6-421E-82DE-923204C33B74



Mathys

Well-Known Member
Joined
Apr 13, 2022
Threads
0
Messages
49
Reaction score
39
Location
Heerlen NL
Vehicles
2022 X3 30e
Country flag
Any chance you could add the thread length of the OEM bolts?
