Information: The vehicle plug does not interlock in the vehicle charge port. The release button on the vehicle lights up red and the charging process cannot be started.
The reason for this is charge connector that is not correctly positioned. As a result, the charging plug cannot be locked and the charging process cannot be started. The use of heavy charging cables/charging plugs can cause this problem.
Action required: The vehicle plug must be inserted fully and straight into the vehicle charge connection so that the locking mechanism can engage.
If necessary, the procedure must be repeated and the vehicle plug may have to be held in position by
hand. If the charging plug tilts down even slightly, this can be enough to prevent the actuator from locking the

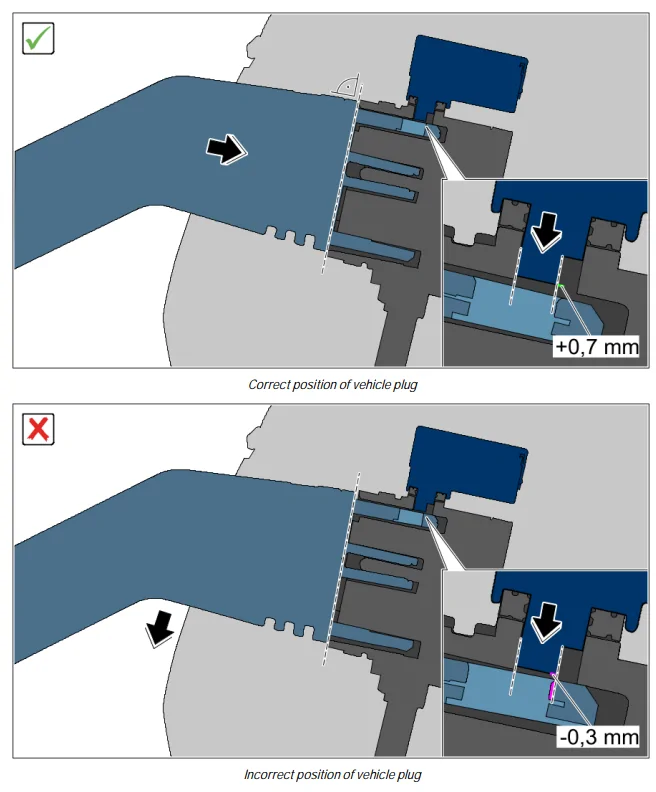

charging plug Incorrect position of vehicle plug.
https://static.nhtsa.gov/odi/tsbs/2024/MC-10252438-0001.pdf
The reason for this is charge connector that is not correctly positioned. As a result, the charging plug cannot be locked and the charging process cannot be started. The use of heavy charging cables/charging plugs can cause this problem.
Action required: The vehicle plug must be inserted fully and straight into the vehicle charge connection so that the locking mechanism can engage.
If necessary, the procedure must be repeated and the vehicle plug may have to be held in position by
hand. If the charging plug tilts down even slightly, this can be enough to prevent the actuator from locking the
charging plug Incorrect position of vehicle plug.
